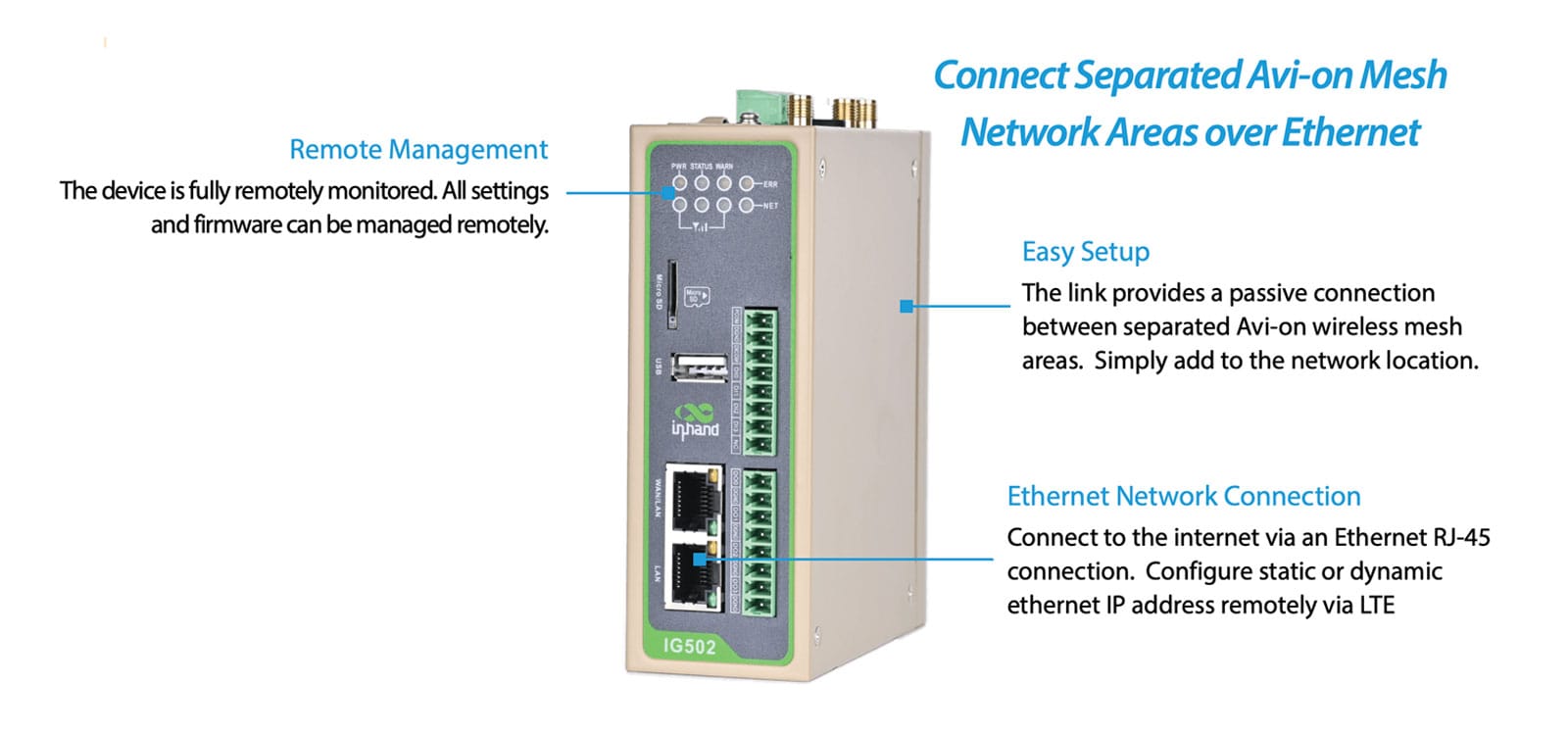

The Avi-on Ethernet/Mesh Link connects separated areas of Avi-on wireless mesh within a building using an existing or new Ethernet LAN.  The link is ideal for connecting widely separated panel rooms, or multi building campus environments.

Build Flexible, Scalable Networks Even in Challenging Building Environments

The Link adds the ability to connect local building wireless areas over a wired connection.  This is useful particularly in panel based deployments where panels are in concrete rooms separated by wide distances, or in multi building campus environments where a single managed network is desired.

Use Cases:

  • Panel deployments in large concrete stadiums
  • Multi-building school or corporate campuses
  • Environments where full wireless mesh coverage is unnecessary or impractical
  • Situations where radio repeaters cannot effectively connect mesh areas

Fast, Low-Level Network Connection

All Avi-on network configuration and management features are supported over the Link. Any device can be controlled and managed from any location within the building.

Supports the Full Avi-on Command Set

The Link uses self-configuring UDP communications, enabling fast, simultaneous communication with all devices—regardless of network size. It is fully compatible with standard Ethernet LAN infrastructure. Simply connect to the LAN, making sure all devices are on the same sub-net.

Secure

All messages are encrypted using Avi-on’s security protocols before being transmitted over the Link. The Link can only send Avi-on message traffic, and messages cannot be identified or intercepted—just as if they were sent via the Avi-on wireless mesh.

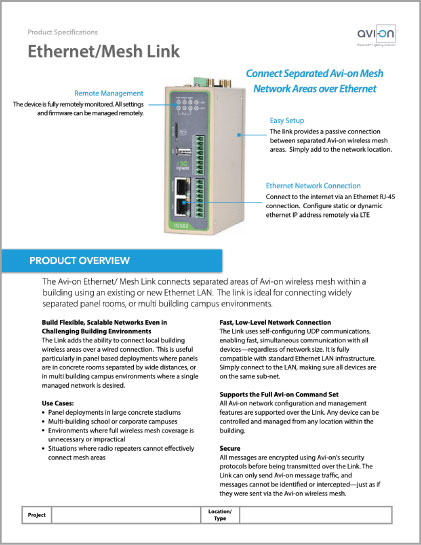

Avi-on Direct Connect Sensors  Ethernet-Mesh Datasheet (PDF)

LTE-Ethernet Bridge

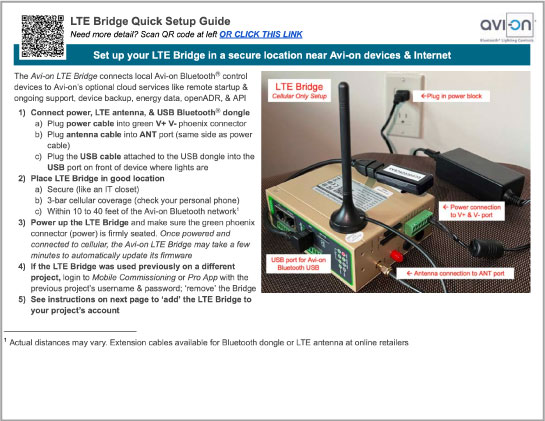

LTE Bridge Quick Setup  LTE Bridge Quick Setup

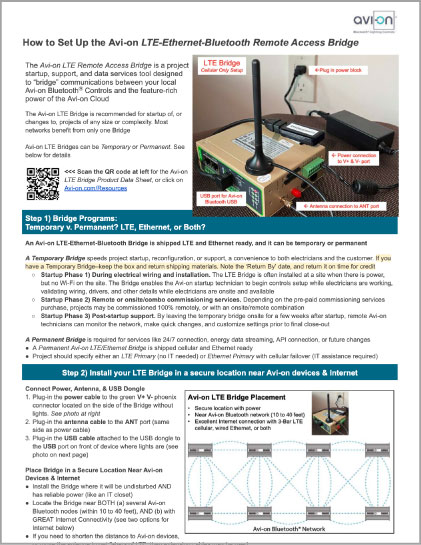

LTE Bridge Setup Guide  LTE Bridge Setup Guide

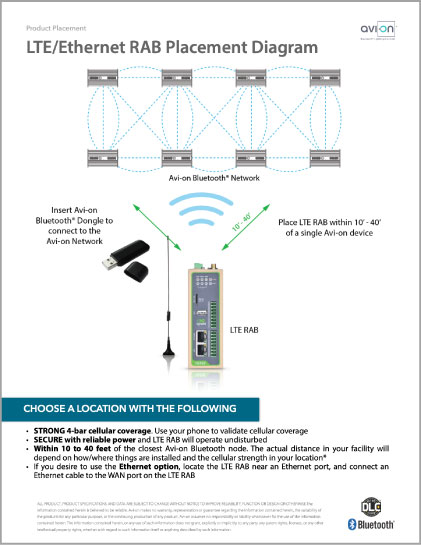

LTE Bridge Placement Guide  LTE Bridge Placement Guide


Avi-on Direct Connect Sensors  Quick Set-up Guide (PDF)

Commercial Installation Guide  Commercial Installation Guide (PDF)

Link
PARTS & ORDERING

Select a part number from the table listed below
Part NumberDescriptionApplicationSupply Voltage
AVI-ETH-MESH-LINKAvi-on Ethernet-Mesh LinkLTE/Ethernet RJ-4512VDC (AC 110-277 Supply Included)

To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for information on becoming an Avi-on partner and order details.

Specifications

  • Supply Voltage (AC Power Supply): 110-240VAC.  50/60HZ
  • Device Input (DC): 12-48 VDC
  • Power Consumption: 200-500 mA
  • Ambient Operating Temperature: -4°F to 158°F (-20°C to 70°C)
  • Storage Temperature: -40°F to 185°F (-40°C to 85°C)
  • Ethernet RJ-15: 10-100 Mbps
  • Bluetooth Signal Frequency: 2402-2480 MHz
  • Bluetooth Wireless Range*: 120* Feet
  • LTE Signal (M2M LTE CAT1): Varies based on location
  • LTE Wireless Range: Tower and Location Dependent, requires 2 bars of signal for reliable operation⌃
  • Dimensions: Length 5.00“ (127 mm), Width 4.25“ (108 mm), Height 1.37“ (35 mm)
  • Certifications: FCC/ROHS/CE
  • LTE: CE, FCC, PTCRB, Verizon Wireless, AT&T
  • BLE: FCC, IC, BQB
* Male-Female USB Extension Cable allows extending the Bluetooth radio up to 100ft from the base unit
⌃ Male-Female SMA Extension cable allows extending the LTE antenna up to 100F from the base unit
