Relay Control Panel
Assembly

(32 Relay Capacity)

Relay Control Panel

Relay Control Panel FEATURES

Relay Control Panel

Description

Each unit comes pre-wired with 8, 16, 24, or 32 relays, fully assembled in UL-listed configurations. The panels are delivered fully assembled, including all control components, making installation easy.

Control functions include relay control, 0–10V dimming, time clocks, scenes, daylight harvesting, motion sensing, and a wide array of AC, low-voltage, and battery-powered wall stations—everything needed to comply with the latest energy codes.

Motion sensing, wall stations, and other distributed components communicate over Avi-on’s wireless mesh, eliminating the need to run any control system wiring outside the panel (other than wired 0-10V dimming).

Avi-on’s controls meet the highest standards of security and performance—both wired and wireless—with UL’s highest security rating (UL 1376 Diamond).

Programming and support can be handled either locally or remotely using a mobile device or laptop, just like any other Avi-on system.

Features

Emergency and non-emergency circuits can be placed in the same panel (with an optional divider) using Avi-on’s unique UL 924 beacon solution. Every individual relay controller is UL 924 rated and can be designated in software as an emergency circuit.

You can also mix voltages in the panel as needed (with an optional divider).

Easily expand by purchasing individual relays and control units (control units are packaged in blocks of 8).

Use Avi-on’s Ethernet-to-Mesh Link to bridge panel rooms over existing (or new) Ethernet wiring, or bridge them using Avi-on’s wireless mesh—your choice.

Benefits

With fast, straightforward installation and no control system wiring (other than 0–10V dimming), Avi-on offers the perfect balance of familiar relay panel-based lighting controls while still providing the benefits of a fully distributed wireless control system. It is upgradable and expandable to full enterprise-level capabilities—all without the need for new wiring or gateways, ever.

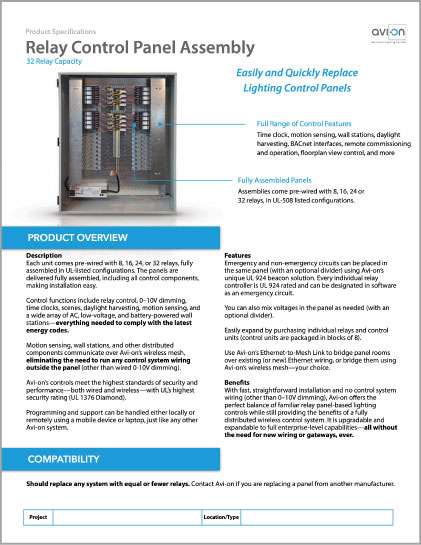

Relay Control Panel  Relay Control Panel Assembly

Relay Control Panel Assembly

Relay Panel Retrofit

Relay Control Panel Assembly

Relay Panel Retrofit


Avi-on Direct Connect Sensors  Quick Set-up Guide (PDF)

Commercial Installation Guide  Commercial Installation Guide (PDF)

Relay Control Panel
PARTS & ORDERING

Select a part number from the table listed below
Part NumberDescriptionApplicationInput VoltageWeight
AVI-PNL-300-8-277Relay Panel Interface Assembly - 8 Circuit block 110-277 VACIndoor110-277 VACC82 lbs.
AVI-PNL-300-16-277Relay Panel Interface Assembly - 16 Circuit block 110-277 VACIndoor110-277 VAC87 lbs.
AVI-PNL-300-24-277Relay Panel Interface Assembly - 24 Circuit block 110-277 VACIndoor110-277 VAC92 lbs.
AVI-PNL-300-32-277Relay Panel Interface Assembly - 32 Circuit block 110-277 VACIndoor110-277 VAC97 lbs.

To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for information on becoming an Avi-on partner and order details.

Specifications

RELAY CONTROL ASSEMBLY

  • Input Voltage (power supplies):
    90-305VAC (277 VAC version),
1 Power supply per two 8 relay assemblies (included)

PHYSICAL PARAMETERS

  • Mounting: DIN Rail Clip (included)
  • Antenna: Single Remote Antenna Frame Mount RPSMA Cable with included Magnetic Antenna (coming soon)
  • 0-10V Dimming: 100mA per Channel
  • Operating Temperature: 14F to 122F (-10C to +50C)
  • Storage Temperature: -40F to +185F (-40C to +85C)

PANEL SPECIFICATION

  • Mounting: Surface Mount
  • Weight: 71 lbs. 10 oz
  • Dimensions: 30.00” H x 24.00” W x 6.00” D
  • Capacity: 40 Relays
  • Subplate: Laser Cut
  • Cover Type: Hinged Locking Cover

INCLUDED SUBCOMPONENTS

  • ENC-301 NEMA/Type 1 Enclosure
  • SP-301 Subplate (28”H x 22”W x .5”D)
  • FB-30 Finger Barriers
  • BR-SO Stand-off Brackets
  • HW-KDL Key Locking Door Latch
  • CRC9000 Mounting Straps

ACCESSORIES

  • VB-1 Voltage Barrier (optional)
  • TB-2-6-8  Terminal Block Assembly
    (8 Line Voltage, 6 Low Voltage)

RCI-B LATCHING RELAY CONTROLLER

  • Humidity Rating: 95% non-condensing

  • Radio Frequency: 2.4GHz

  • Wireless Standard: BLE 5.0 with Mesh

  • Point to Point Range*: 25m (80ft) with obstructions and
    107m (350ft) unobstructed

  • Security: AES 128-bit encryption for device to device communication
    AES 256-bit encryption for device to cloud communication

REGULATORY

  • UL: UL924-2022 (ED10)
    UL 60730-1 (ED5)
  • FCC: FCC: 2AFZI-AVIBG21
    FCC Part 15, Subpart B (Class B)
    FCC Part 15.247
  • IC: IC: 20544-AVIBG21
    ICES-003, Issue 7, Oct. 2020
    RSS-GEN Issue 5, Feb. 2021 Amendment 2
    RSS-247 Issue 2, Feb. 2017
  • BQB:  DID: D063032
    Qualified Design ID (QDID):
    205509
    178212
    175341

*When communicating through the mesh, range is essentially unlimited (5000ft+). Repeaters may be necessary if the nearest switches or sensors are located more than 25m (80 feet) from the panel
