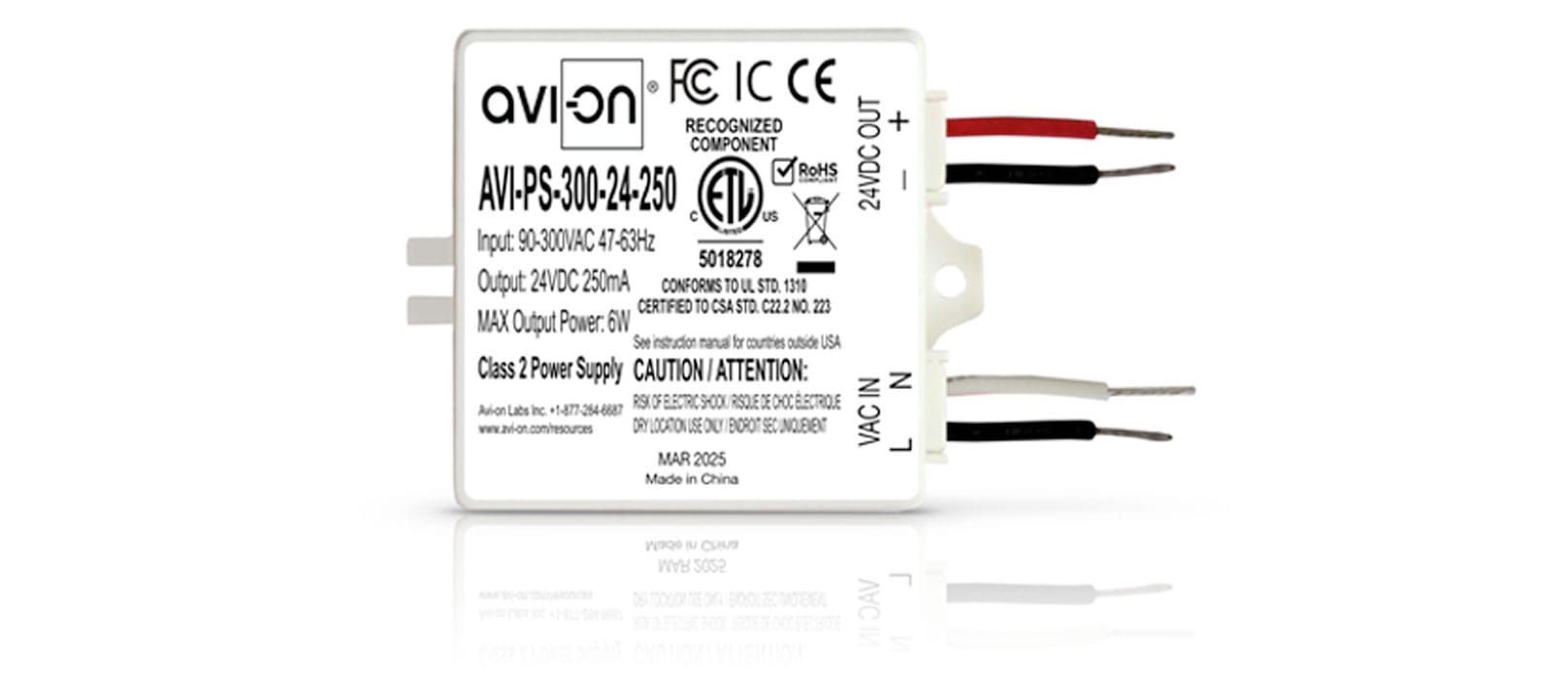

24VDC Power Supply
(No Relay)

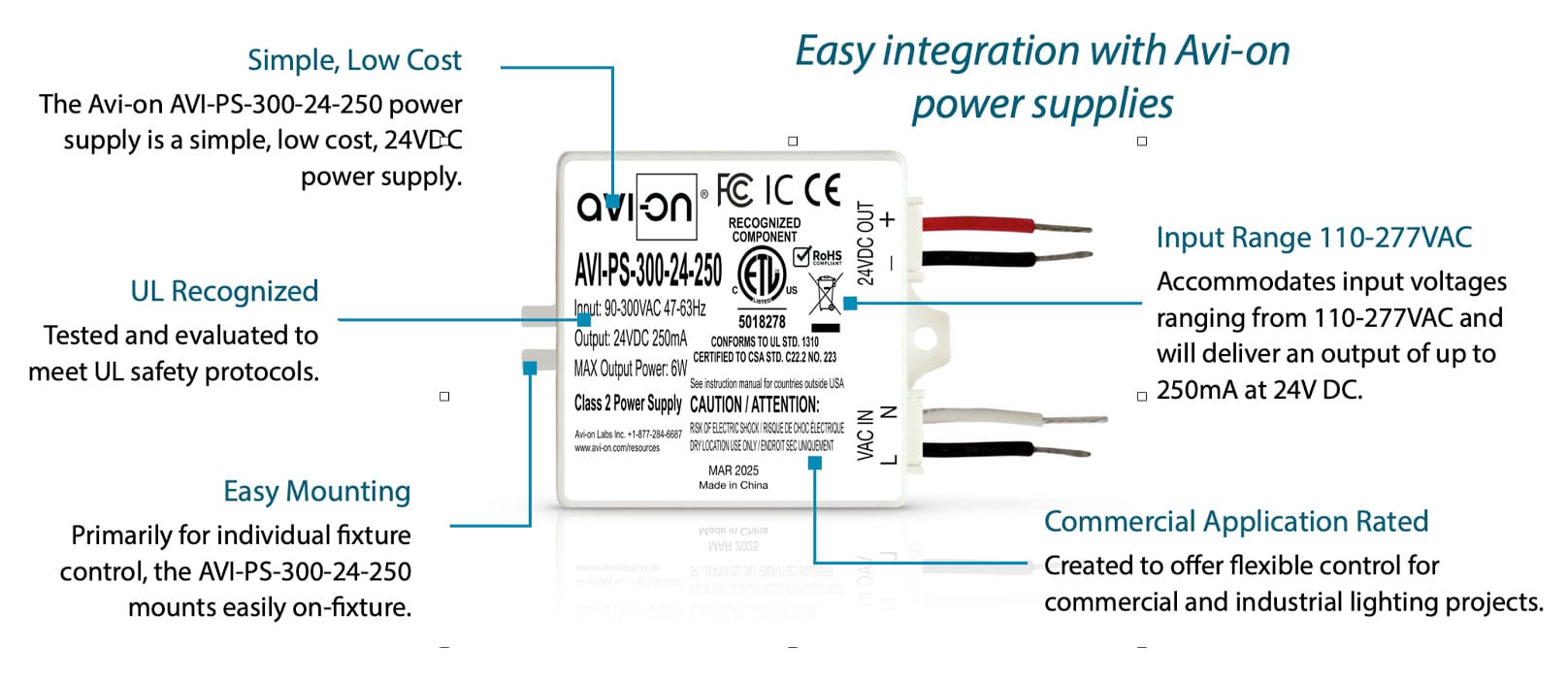

Power Supply FEATURES
The Avi-on AVI-PS-300-24-250 power supply is a simple, cost-effective, versatile 24VDC power supply for commercial and industrial lighting applications. Typical applications include individual fixture controls with a dim-to-off driver that does not have an auxiliary power supply and for 24V powered network sensors. The AVI-PS-300-24-250 can accommodate input voltages ranging from 110-277VAC and deliver an output of up to 250mA at 24V DC. It also features screw pads for fixture mounting.
Power Supply SPECIFICATIONS
Features
- 24V DC 250mA output
- Class 2, Commercial application rated
- UL Recognized
Certifications
- UL STD. 1310
- CSA STD. C22.2 No. 223
- FCC Part 15
Product Data
- Product Type: Class 2 Power Supply
- Input: 110-277VAC, 50/60Hz, 6W
- Output: 24VDC, 250mA
- Over Voltage Protection: ≤0.8A
(1A@250VAC Fuse) - No Load Power Dissipation: ≤0.3W
- Operating Temp: -30°C to 70°C
- Storage Temperature: -40° C to 70°C
- Relative Humidity: 5-95% (non-condensing)
- Color: White

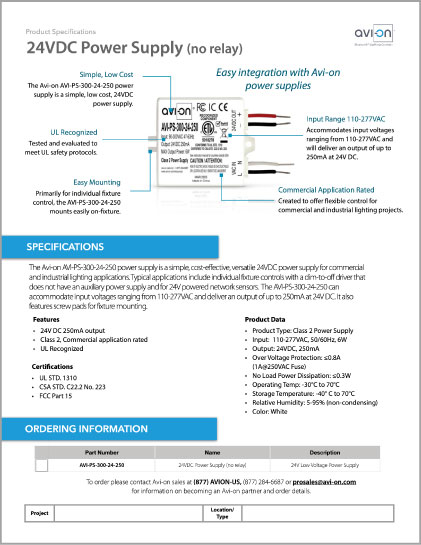

Power Supply Datasheet (PDF)
Quick Set-up Guide (PDF)
Commercial Installation Guide (PDF)Power Supply
PARTS & ORDERING
| Part Number | Product Name | Description |
|---|---|---|
| AVI-PS-300-24-250 | 24VDC Power Supply (no relay) | 24V Low Voltage Power Supply |
To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for order information or integration support.
