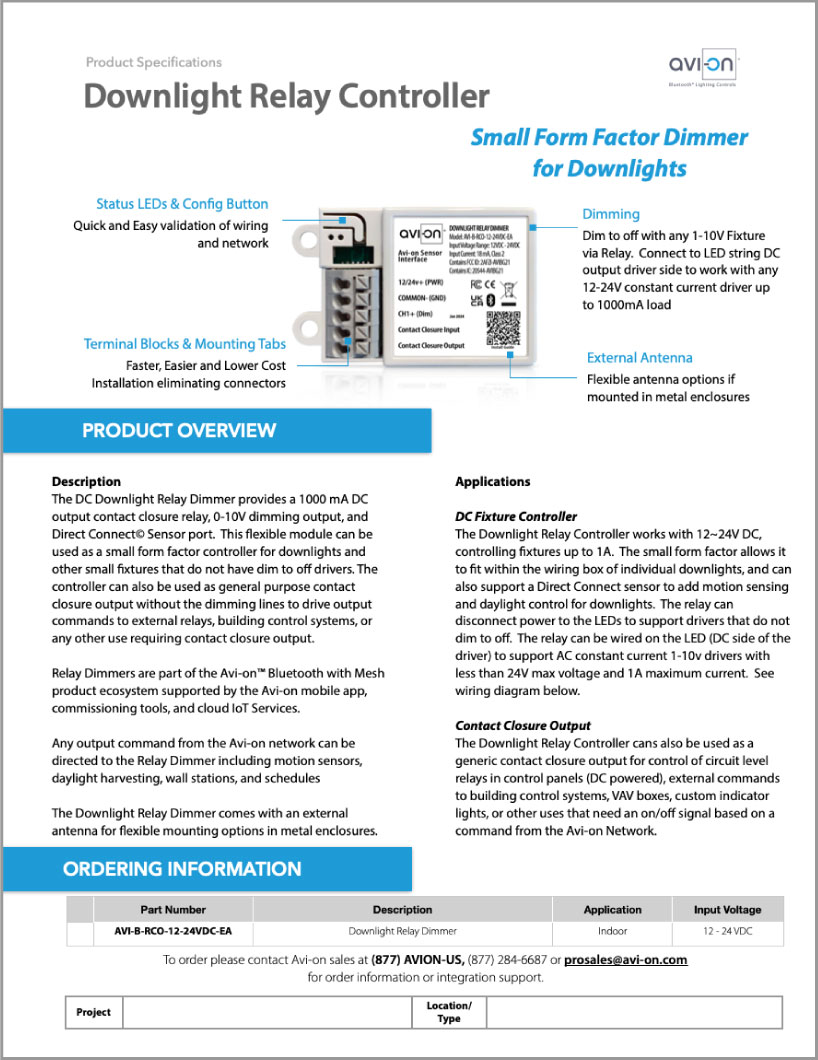

Downlight Relay

Downlight Relay Controller

Downlight Relay

Downlight Relay Controller

Downlight Relay


The DC Downlight Relay Dimmer provides a 1000 mA DC output contact closure relay, 0-10V dimming output, and Direct Connect© Sensor port.  This flexible module can be used as a small form factor controller for downlights and other small fixtures that do not have dim to off drivers. The controller can also be used as general purpose contact closure output without the dimming lines to drive output commands to external relays, building control systems, or any other use requiring contact closure output.

Relay Dimmers are part of the Avi-on™ Bluetooth with Mesh product ecosystem supported by the Avi-on mobile app, commissioning tools, and cloud IoT Services.

Any output command from the Avi-on network can be directed to the Relay Dimmer including motion sensors, daylight harvesting, wall stations, and schedules

The Downlight Relay Dimmer comes with an external antenna for flexible mounting options in metal enclosures.


DC Fixture Controller

The Downlight Relay Controller works with 12~24V DC, controlling fixtures up to 1A.  The small form factor allows it to fit within the wiring box of individual downlights, and can also support a Direct Connect sensor to add motion sensing and daylight control for downlights.  The relay can disconnect power to the LEDs to support drivers that do not dim to off.  The relay can be wired on the LED (DC side of the driver) to support AC constant current 1-10v drivers with less than 24V max voltage and 1A maximum current.  See wiring diagram below.

Contact Closure Output

The Downlight Relay Controller cans also be used as a generic contact closure output for control of circuit level relays in control panels (DC powered), external commands to building control systems, VAV boxes, custom indicator lights, or other uses that need an on/off signal based on a command from the Avi-on Network.

Avi-on LTE Remote Bridge Avi-on LTE Remote Bridge

Downlight Relay

Select a part number from the table listed below
Part NumberDescriptionApplicationInput Voltage
AVI-B-RCO-12-24VDC-EADownlight Relay ControllerIndoor12VDC - 24VDC

To order please contact Avi-on sales at (877) AVION-US or
for information on becoming an Avi-on partner and order details.


  • Input Voltage: 12VDC – 24VDC
  • Current Draw: 25mA @12V, 30mA @24V
  • Mounting: Removable mounting tabs
  • Weight: 0.45 oz (16g)
  • Terminal Blocks: 22-16 AWG wires
  • Operating Temp: -40C to +70C (-40F to +158)
  • Storage Temperature: -40C to +85C (-40F to +185F)
  • Humidity Rating: 95% non-condensing
* Note: Operating controller at or above these levels may result in damage to components/product
  • Radio Frequency: 2.4GHz
  • Wireless Standard: BLE 4.2 with Mesh
  • Point to Point Range**: 80ft with obstructions; 350ft unobstructed
  • ESD: IEC/EN 61000-4
  • Security: AES 128-bit encryption for device to device communication, AES 256-bit encryption for device to cloud communication
  • Warranty: 5 years; 10 years optional
** When communicating through the mesh, range is essentially unlimited (5000ft+)


  • EN IEC 6100-6-1:2019
  • EN IEC 6100-6-3:2021
  • ETSI EN 301 489-1 V2.2.3 (2019-11)
  • ETSI EN 301 489-17 V3.2.4 (2020-09)
  • BS EN IEC 62368-1:2020+A11:2020
  • EN 62479:2010
  • EN 50663:2017
  • ETSI EN 300 328 v2.2.2 (2019-07)
  • IC ID: 20544-AVIBG21
  • ICES-003, Issue 7, Oct. 2020
  • RSS-GEN Issue 5, Feb. 2021 Amendment 2
  • RSS-247 Issue 2, Feb. 2017
  • FCC Part 15, Subpart B (Class B)
  • FCC Part 15.247

DID: D063032
Qualified Design ID (QDID): 205509, 178212,175341
