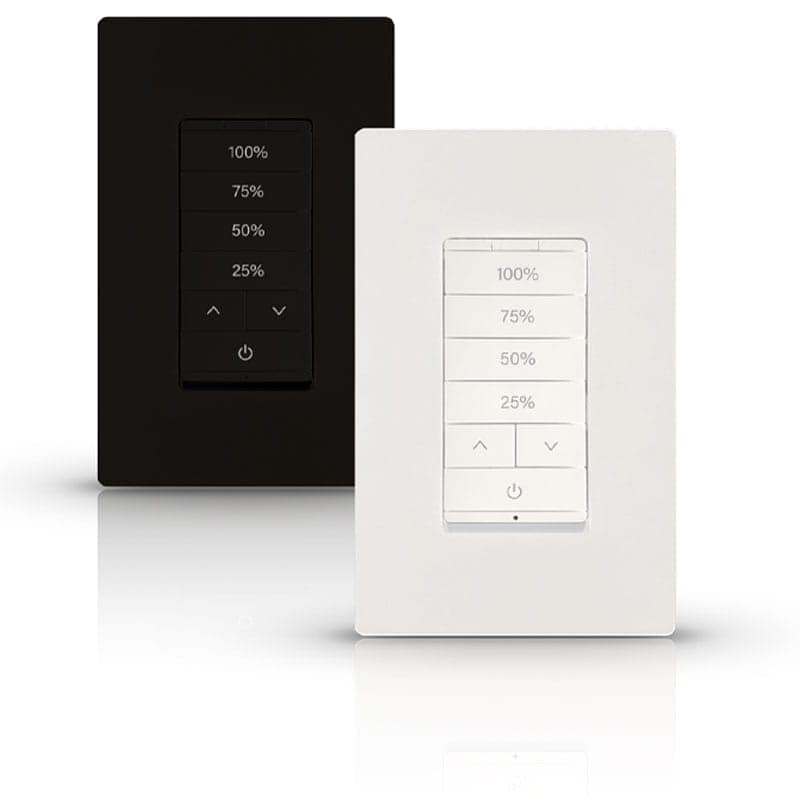

Dimming Wall Station

Dimming Wall Station

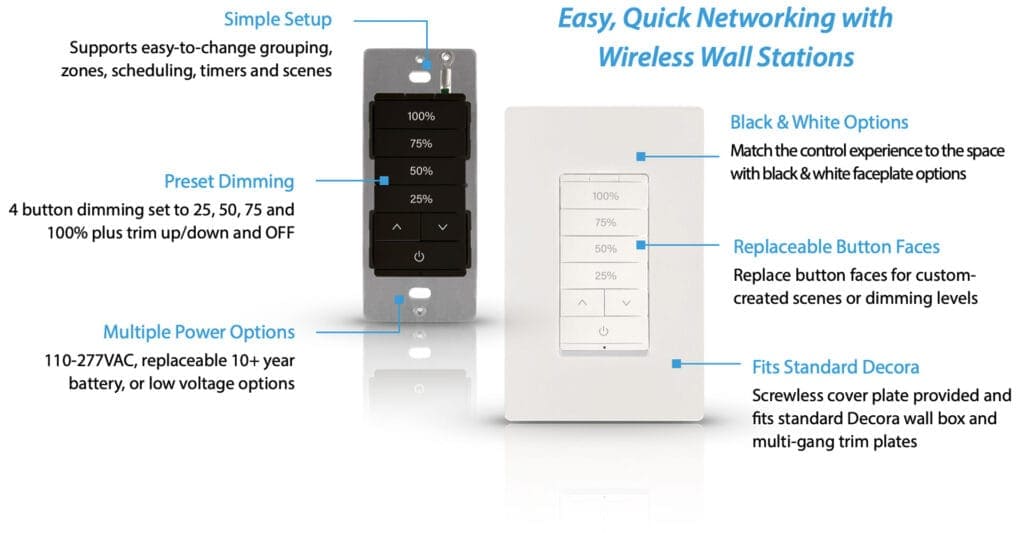

FEATURES

Dimming Wall Station

Description

With AC and battery-powered options, Avi-on Wall Stations are available for new construction and retrofit needs. All controls interface to lighting fixtures and with the Avi-on App, providing a platform that supports easy-to-change grouping, scheduling, timers and scenes.

Specifications

  • Battery powered with 10+ year battery life
  • AC 110-277V version
  • 4 buttons plus trim up/down and OFF
  • Preset Dimming wall station percentages set to 25, 50, 75 and 100. Also configurable scene control if desired
  • Replaceable button faces
  • Fits standard Decora wall box and multi gang trim plates
  • Screwless cover plate also provided

Common Specifications

  • Indoor use only (spray resistant cover plate available for food service applications)
  • Operating Temp: 32 to 104 °F (0 to 40 °C)
  • 10+Year battery life with Replaceable Batteries
  • AC version includes load line air gap disconnect for wired retrofits
  • UL Listed

Dimming Wall Station
PARTS & ORDERING

Select a part number from the table listed below
Part NumberNameDescription
AVI-B-2401AC-2Dimming Wall Station (AC)Avi-on Scene Controller AC with 25/50/75/100% dimming buttons
AVI-B-2402BAT-2Dimming Wall Station (Battery)Avi-on Scene Controller Battery with 25/50/75/100% dimming buttons

To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for information on becoming an Avi-on partner and order details.

Specifications

(AC Info)
Input Voltage: 110-277V
Input Frequency 50/60Hz
Amperage: 5.0A
Power Wires: 16 gauge
Green: GND
Red: Load
White: Neutral
Black: Line

(Battery Description)
Estimated Battery Life: 10 year
Battery Type: CR123A*2 (Lithium)
DC: 3V 5mA

Operating-Temperature: -30 – 70 °C
Storage Temperature: -30 – 70 °C
Dimensions: 4.69” (119mm), 2.95” (75mm), 1.57” (40mm)
Regulatory Description: USA FCC: 20544-AVI1010B, Canada IC: 20544-AVI1010B, UL 3MWZ, 2415AC, 2402BAT, E496908

Certifications
FCC:
FCC ID: 2AFZI-AVIBG21, FCC Part 15, Subpart B (Class B), FCC Part 15.247
IC: IC ID: 20544-AVIBG21, ICES-003, Issue 7, Oct. 2020, RSS-GEN Issue 5, Feb. 2021 Amendment 2, RSS-247 Issue 2, Feb. 2017
BQB: DID: D063032, Qualified Design ID (QDID): 205509, 178212, 175341
UL: UL File E519564, UL 60730-1 ED. 5, XACN/XACN7 Touch Lighting Controls
