Avi-on Scene Controller

Avi-on AC Wall Stations are available for new construction and retrofit needs. All controls interface to lighting fixtures and with the Avi-on App, providing a platform that supports easy-to-change grouping, scheduling, timers, and scenes.

Scene Controller
FEATURES

Scene Controllers

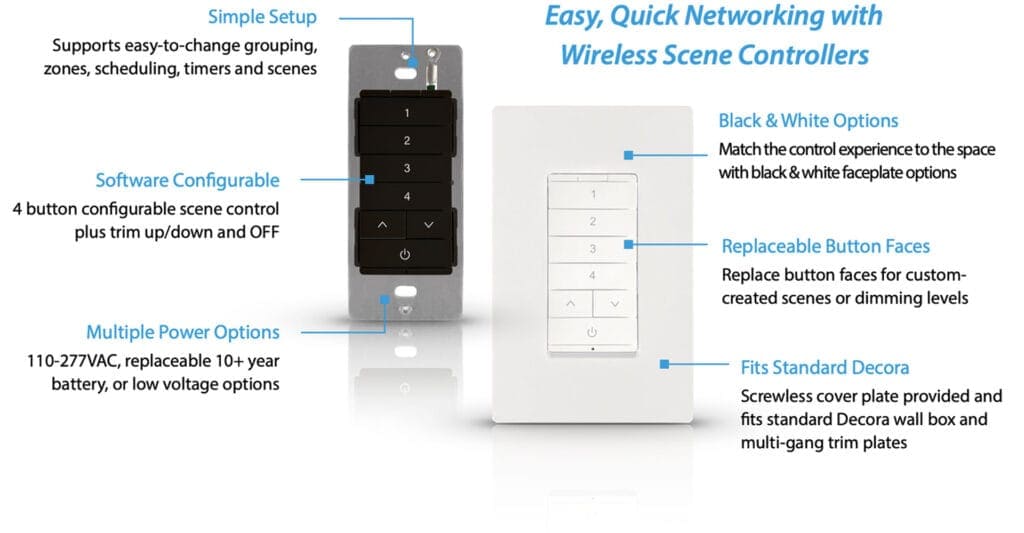

Features

  • AC 110-277V version/
    Battery powered with 10+ year battery life/
    Low Voltage 10-35VDC or 10-25VAC
  • 2 buttons ON/OFF or Dim+/Dim-
  • Software configurable 4-button scene control and dimming wall station configurations
  • Continuously powered device helps form a full-building wireless mesh network
  • White or black faceplate & button options
  • Replaceable button faces
  • Fits standard Decora wall box and multi-gang trim plates (only fits square mud rings, not rounded or beveled)
  • Screwless cover plate also provided

Specifications

  • Indoor use only (spray-resistant cover plate available for food service applications)
  • Operating Temp: -4 to 122°F (-20 to 50°C)
  • AC version includes load line air gap disconnect for wired retrofits
  • UL Listed

Materials

  • Non-ferrous materials (plastic and aluminum).
  • All materials are RoHS compliant.

AC Scene Controller  Scene Controller – AC (PDF)

Battery Scene Controller  Scene Controller – Battery (PDF)

Battery Scene Controller  Scene Controller – Low Voltage (PDF)

Wall Station Dimensions

Same dimensions for all products

Avi-on Direct Connect Sensors  AC Wall Stations

Avi-on Direct Connect Sensors  LV Wall Stations



Avi-on Direct Connect Sensors  Quick Set-up Guide (PDF)

Commercial Installation Guide  Commercial Installation Guide (PDF)

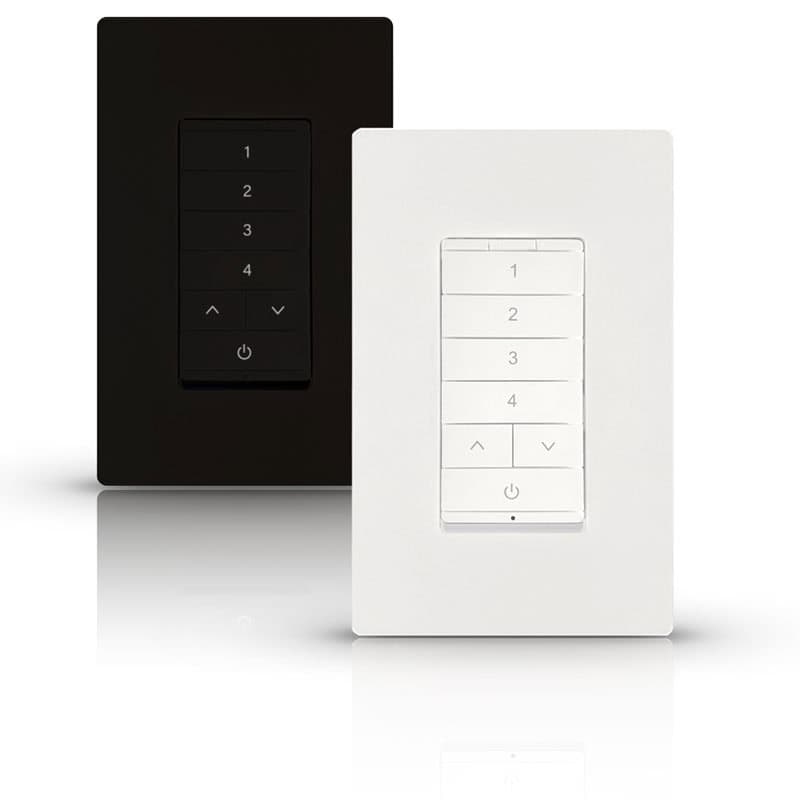

Available in Black or White

Scene Controller

Scene Controller
PARTS & ORDERING

Select a part number from the table listed below
Part NumberNameDescription
AVI-B-2401AC-1Scene Controller - ACWireless AC-powered scene controller. Programs up to 4 zones or scenes.
1–4 Buttons. 110–277VAC.
AVI-B-2402BAT-1Scene Controller - BatteryWireless battery-powered scene controller. Programs up to 4 zones or scenes. 1–4 Buttons. No wiring required.
AVI-B-2403LV-1Scene Controller - Low VoltageWireless low-voltage scene controller. Programs up to 4 zones or scenes. 1–4 Buttons. 12–24VDC and 12–24VAC.
AVI-B-2401AC-4Scene Controller - AC with Blank Black ButtonsAC-powered scene controller with blank black buttons. Custom labels ordered separately. 110–277VAC.
AVI-B-2402BAT-4Scene Controller - Battery with Blank Black ButtonsBattery-powered scene controller with blank black buttons. Custom labels ordered separately.
AVI-B-2403LV-4Scene Controller - Low Voltage with Blank Black ButtonsLow-voltage scene controller with blank black buttons. Custom labels ordered separately. 12–24VDC and 12–24VAC.

To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for order information or integration support.

Specifications

Scene Controller - AC

Electrical

  • Input Voltage: 110–277VAC
  • Input Frequency: 47–63Hz
  • Amperage: 5.0A
  • Operating Temperature: -4–122 ºF
    (-20–50 °C)
  • Storage Temperature: -40–185 ºF
    (-40–85 °C)

Power Wires

  • Gauge: 16
  • Black: AC Line In
  • Red: AC Line Out
  • White: AC Neutral
  • Green: AC Ground

Dimensions

  • Length: 4.69” (119mm)
  • Width: 2.95” (75mm)
  • Height: 1.57” (40mm)
Certifications
  • USA:
    FCC ID: 2AFZI-AVIBG21
    FCC Part 15, Subpart B (Class B)
    FCC Part 15.247
  • Canada:
    IC ID: 2AFZI-AVIBG21
    ICES-003, Issue 7, Oct. 2020
    RSS-GEN Issue 5, Feb. 2021 Amendment 2
    RSS-247 Issue 2, Feb. 2017
  • BQB:
    DID: D063032
    Qualified Design ID (QDID):
    205509
    178212
    175341
  • UL:
    UL File E519564
    UL 60730-1 ED. 5
    XACN/XACN7 Touch Lighting Controls

Scene Controller - Battery

Battery

  • Estimated Battery Life: 10 year
  • Battery Type: CR123A*2 (Lithium)
  • DC 3V 5mA

Specifications

  • Operating Temperature: -4–122 ºF
    (-20–50 °C)
  • Storage Temperature -40–185 ºF
    (-40–85 °C)

Dimensions

  • Length: 4.69” (119mm)
  • Width: 2.95” (75mm)
  • Height: 1.57” (40mm)
Certifications
  • USA:
    FCC ID: 2AFZI-AVIBG21
    FCC Part 15, Subpart B (Class B)
    FCC Part 15.247
  • Canada:
    IC ID: 2AFZI-AVIBG21
    ICES-003, Issue 7, Oct. 2020
    RSS-GEN Issue 5, Feb. 2021 Amendment 2
    RSS-247 Issue 2, Feb. 2017
  • BQB:
    DID: D063032
    Qualified Design ID (QDID):
    205509
    178212
    175341
  • UL:
    UL File E519564
    UL 60730-1 ED. 5
    XACN/XACN7 Touch Lighting Controls

Scene Controller - Low Voltage

Electrical

  • Input Voltage: 10–35VDC
  • Input Voltage: 10–25VAC
  • Input Frequency (VAC): 47–63Hz
  • Amperage: – 20 mA
  • Operating Temperature: -4–122 ºF
    (-20–50 °C)
  • Storage Temperature: -40–185 ºF
    (-40–85 °C)

Power Wires

  • Gauge: 16
  • Red: AC/DC (+)
  • Black: AC/DC (-)

Dimensions

  • Length: 4.69” (119mm)
  • Width: 2.95” (75mm)
  • Height: 1.57” (40mm)
Certifications
  • USA:
    FCC ID: 2AFZI-AVIBG21
    FCC Part 15, Subpart B (Class B)
    FCC Part 15.247
  • Canada:
    IC ID: 2AFZI-AVIBG21
    ICES-003, Issue 7, Oct. 2020
    RSS-GEN Issue 5, Feb. 2021 Amendment 2
    RSS-247 Issue 2, Feb. 2017
  • BQB:
    DID: D063032
    Qualified Design ID (QDID):
    205509
    178212
    175341
  • UL:
    UL File E519564
    UL 60730-1 ED. 5
    XACN/XACN7 Touch Lighting Controls
