wired
Corner Mount
PIR Sensor

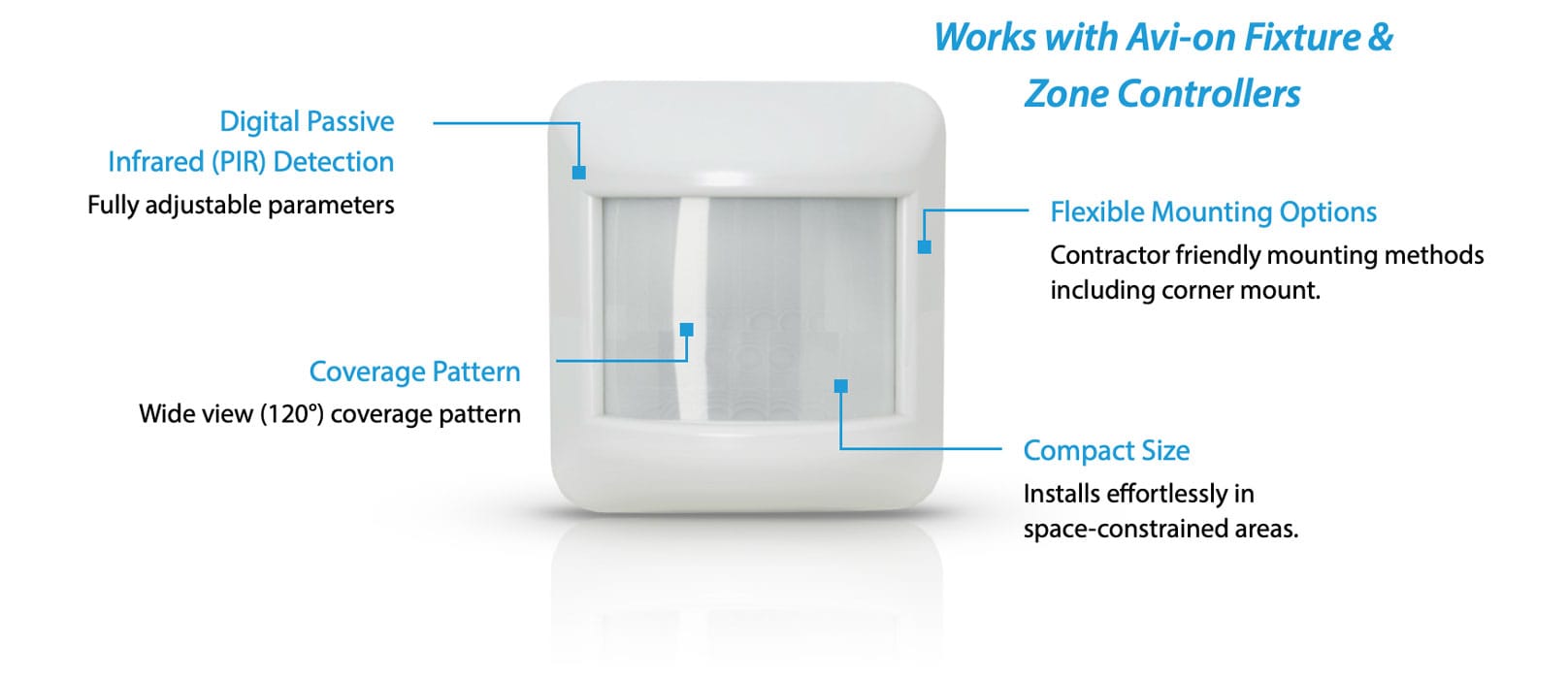

SENSOR FEATURES
Product Overview

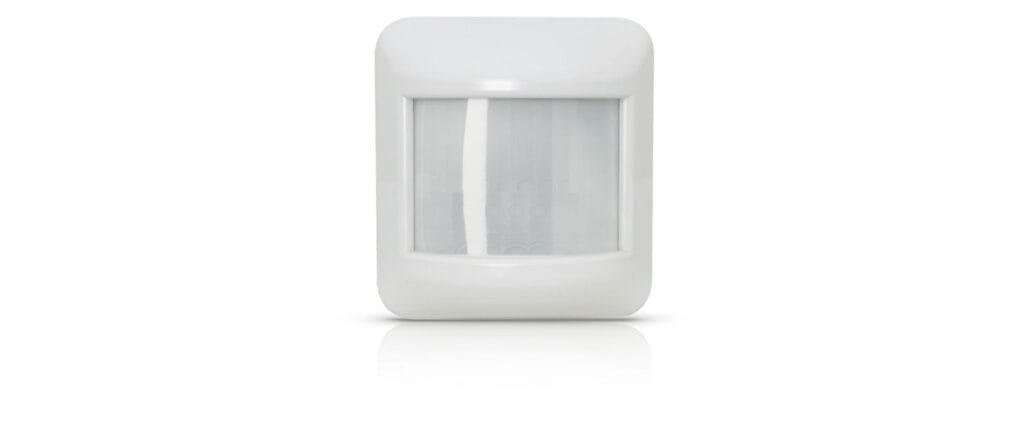

The Avi-on Wired Corner Mount PIR Sensor delivers reliable motion detection using digital passive infrared (PIR) technology and advanced signal processing. Designed for fast, contractor-friendly installation, this compact sensor offers a wide 120° field of view and flexible mounting options including wall, corner, and conduit setups. Ideal for classrooms, open offices, hallways, and other large spaces, this sensor integrates seamlessly with Avi-on Bluetooth Mesh lighting systems.
Description
Wide view occupancy sensors enable mounting to a wall, corner, junction box, or conduit. This flexibility reduces contractor installation time and provides a secure and clean finished appearance. These sensors utilize the latest passive infrared technology and digital signal processing techniques to provide unmatched detection performance.
Operation
The Corner Mount PIR sensor can be powered by the 24 VDC Aux port of the AVI-XFAC-16A-1CH-CL1. Up to 5 sensors may be powered from one XFAC. When used with the AVI-SIM-12-24VDC, a separate power supply must be used such as the Avi-on AVI-PS-300-24-250 or
AVI-PSR20-277-24-150.
Ideal Applications
A single sensor may provide sufficient coverage in many spaces, however, multiple low voltage sensors can be easily wired together to provide improved coverage for large or irregular shaped spaces.
- Classrooms
- Open Areas
- Large Offices
- Conference Rooms
- Hallway
Key Features
- Digital PIR Detection – Accurate occupancy sensing using passive infrared technology
- Wide 120° Coverage – Effective motion detection for open spaces and room corners
- Flexible Mounting Options – Wall, corner, junction box, or conduit
- Compact Size – Installs easily in tight spaces and low-profile applications
- Fully Adjustable Parameters – Customize sensitivity, time delay, and other settings
- Low Voltage Powered – Compatible with Avi-on XFAC and power supply options
- Scalable Coverage – Link multiple sensors for large or irregular spaces
- Seamless Integration – Works with Avi-on lighting controls and Bluetooth Mesh platform
Sensor Set Up Guide (PDF)
Sensor Placement Guide (PDF)
Quick Set-up Guide (PDF)
Commercial Installation Guide (PDF)Sensor
PARTS & ORDERING
| Part Number | Name | Application | Color |
|---|---|---|---|
| AVI-SEN-SWCP-12-24 | Wired Corner Mount PIR | Junction, ceiling | White |
To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for order information or integration support.
Specifications
ELECTRICAL
- OPERATING VOLTAGE: 12-24 VDC
- CURRENT DRAW: 5mA
- OUTPUT: Logic High VDC (Occupied Mode)
- RECOMMENDED POWER PACKS: Avi-on AVI-PS-300-24-250, or AVI-PSR10-277-12-350
ENVIRONMENTAL
- OPERATING TEMP: 32°F to 122°F (0°C to 50°C)
- RELATIVE HUMIDITY: 0-95% Non-Condensing
- INDOOR USE ONLY
- ROHS COMPLIANT
ENVIRONMENTAL
- SIZE: 2.875” H x 2.75” W x 3.25”D. (7.30 x 6.98 x 8.25 cm)
- WEIGHT: 4.75 oz.
- COLOR: White
OPERATION
- TIME DELAYS: 30 sec. (Timing is configurable remotely though Avi-on control settings)
CODE COMPLIANCE
Sensors can be used to meet ASHRAE 90.1, IECC, & Title 24 energy code requirements
