Avi-on Low Voltage Fixture Adapter

LVFA FEATURES

LVFA Features

Description

The LVFA series fixture adapter mounts inside lighting fixtures proving addressability for each luminaire.  All fixture adapters are part of the Avi-on® Bluetooth® with Mesh product ecosystem supported by the Avi-on mobile app, commissioning tools, and cloud IoT Services.

Operation

The fixture adapter requires 12~24VDC. It must be powered either by a LED driver with AUX output or an external Avi-on power supply. Once powered up and added to the network, the fixture adapter dim lighting loads in response to the input from communicating devices.

Applications

This family of low voltage fixture adapters is ideal for controlling any lighting fixture that utilizes 0-10V dim-to-drivers. Its compact size makes it easy to fit inside most indoor fixtures such as flat panels, troffers, retrofit kits, linear architectural fixtures, recessed and other luminaires for offices and schools applications.

It is also a great solution for commercial, industrial and outdoor projects such as warehouses, gymnasiums, common areas, parking lots, garages, and manufacturing plants using high-bay (linear or UFO), vapor tights, utility wraps, etc.

The external antenna model is well suited for outdoor luminaires such as area lights, floods, canopies and other garage or open parking area fixtures.

Finally, the 2-channel 0-10V model is ideal for projects with tunable white requirements, where one channel is use to adjust the color temperature (CCT) and the other the light level (also works with two independent drivers).

LVFA
PARTS & ORDERING

Select a part number from the table listed below
Part NumberDescriptionApplicationInput Voltage
AVI-B-LVFA-12-24VDC-1CHFixture Adapter, Single Channel 0-10V, Dim-to-off driverIndoor12 - 24 VDC
AVI-B-LVFA-12-24VDC-CCTFixture Adapter, Dual Channel 0-10V, Dim-to-off driver, Tunable WhiteIndoor, CCT12 - 24 VDC
AVI-B-LVFA-12-24VDC-WCUse for installing two standard drivers for color changing ( 0-10V dimming on each string)Indoor, CCT12 - 24 VDC
AVI-B-LVFA-12-24VDC-1CH-OAFixture Adapter, Single Channel 0-10V, Dim-to-off driver, External AntennaOutdoor12 - 24 VDC

To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for order information or integration support.

Specifications

  • Input Voltage: 12-24VDC
  • Current: 15mA without a Sensor, 19mA with a DC PIR Sensor, 48mA with a DC Microwave Sensor

Inrush Current

  • 12VDC: 225 mA (285 mA max)
  • 12VDC + Sensor: 275 mA (340 mA max)
  • 12VDC Inrush Current Time: 10ms ≤ Δt ≤ 20ms
    (15ms Typical with 3dB Width of 6ms)
  • 24VDC: 250 mA (315 mA max)
  • 24VDC + Sensor: 310 mA (390 mA max)
  • 24VDC Inrush Current Time: 12ms ≤ Δt ≤ 24ms
    (20ms Typical with 3dB Width of 16ms)

  • 0-10V Dimming: 5mA per Channel

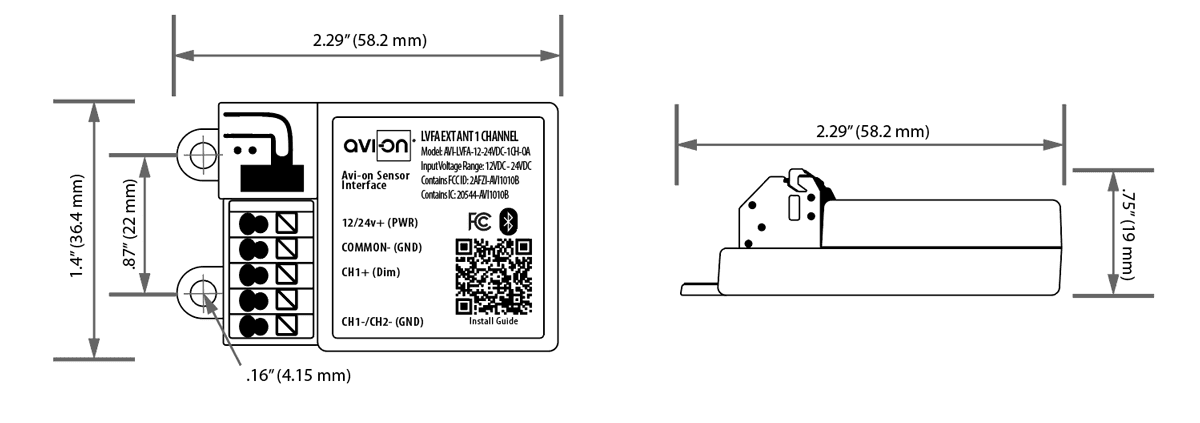

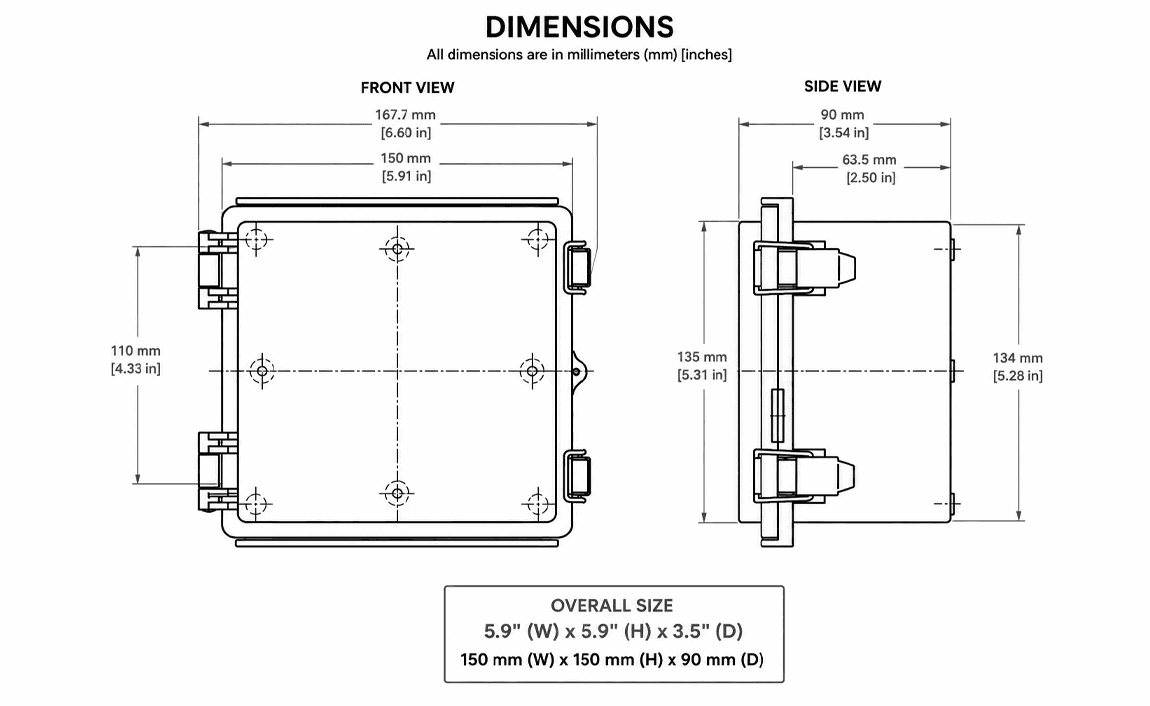

  • Size: 2.30in x 1.43in x 0.75in, (58.2mm x 36.4mm x 19mm)
  • Mounting: Removable mounting tabs
  • Weight: 0.45 oz (16g)
  • Terminal Blocks: 22-16 AWG wires
  • Operating Temperature*: -40F to +158F (-40C to +70C)
  • Storage Temperature: -40F to +185F (-40C to +85C)

  • Humidity Rating: 95% non-condensing

  • Radio Frequency: 2.4GHz

  • Wireless Standard: BLE 4.2 with Mesh

  • Point to Point Range**: 80ft with obstructions;
    350ft unobstructed
  • ESD: IEC/EN 61000-4
  • Security:
    AES 128-bit encryption for device to device communication
    AES 256-bit encryption for device to cloud communication
  • Warranty: 5 years; 10 years optional
  • Regulatory:
    FCC ID: 2AFZI-AVIBG21
    IC ID: 20544-AVIBG21
    BQB:  DID: D063032
    CE: EN IEC 6100-6-1:2019, EN IEC 6100-6-3:2021
    UL 916, 2043 (Plenum Rated)
    UL 924 Emergency Lighting Equipment
Note: Operating controller at or above these levels may result in damage to components/product
*For temperatures below freezing or dew point, the device should be sealed in a watertight container to prevent frost buildup.
**When communicating through the mesh, range is essentially unlimited (5000ft+).

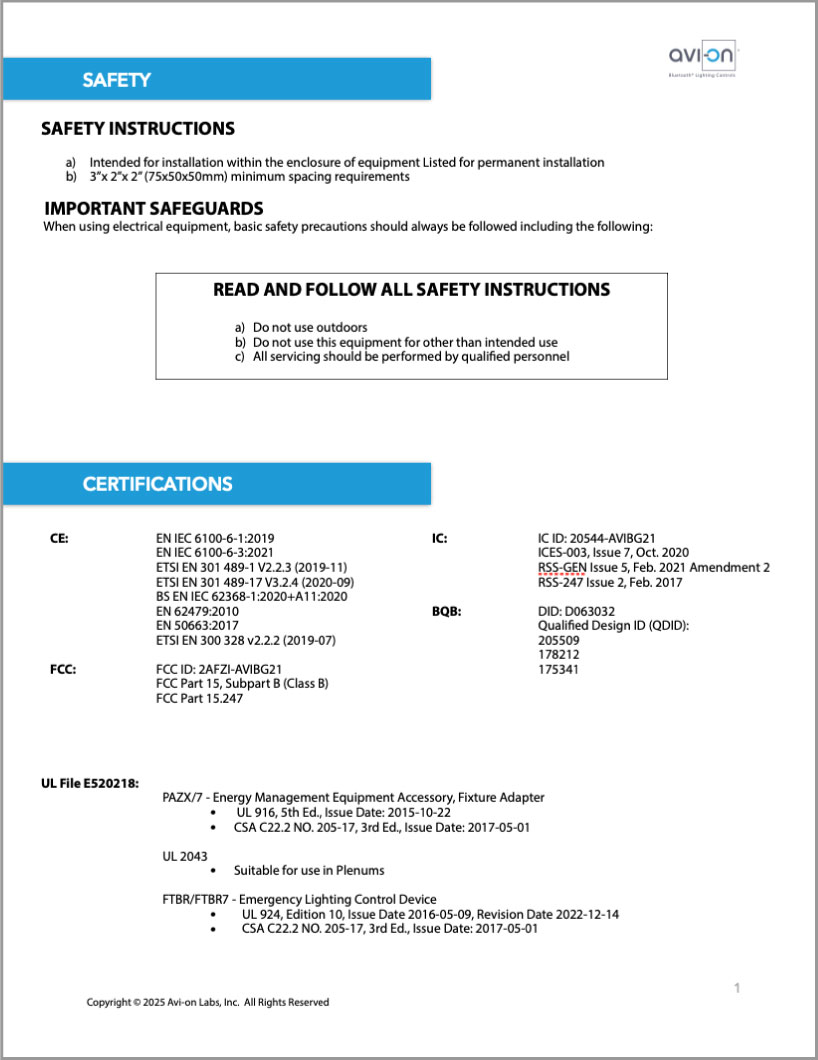

Safety & Certification
