Avi-on Fixture Adapters

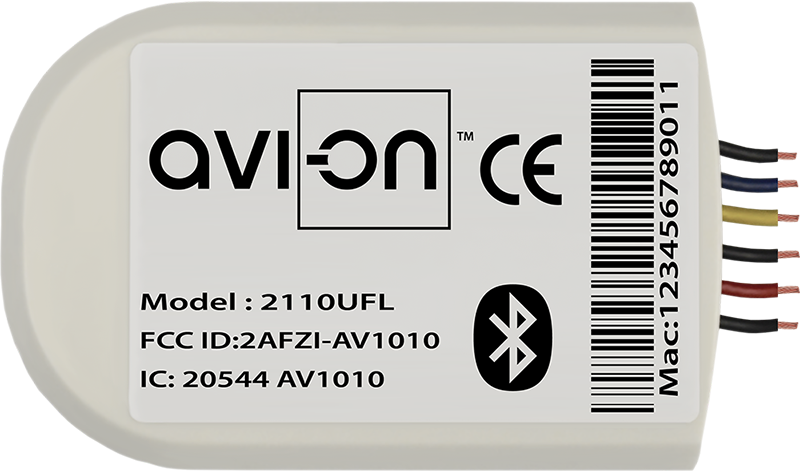

Legacy Fixture Adapters are packaged DC- powered adapters that enable Bluetooth® wireless lighting controls for on/off, dimming and tunable white functions. The compact design incorporates the antenna and all controls needed to interface with the Avi-on App, providing a ready Powered by Avi-on™ platform that supports grouping, scheduling, timers and scene management.



Parts and Ordering

Select a part number from the table listed below.
Supply Voltage Channels Relay Part Number
11 - 18 VDC Single No 2110UFL
11 - 18 VDC Dual No 2210UFL
11 - 18 VDC Single Yes 2115UFL
11 - 18 VDC Dual Yes 2215UFL


To order please contact Avi-on sales at

(877) AVION-US
or
prosales@avi-on.com

for information on becoming an Avi-on partner and order details.



Legacy Relay Adapters

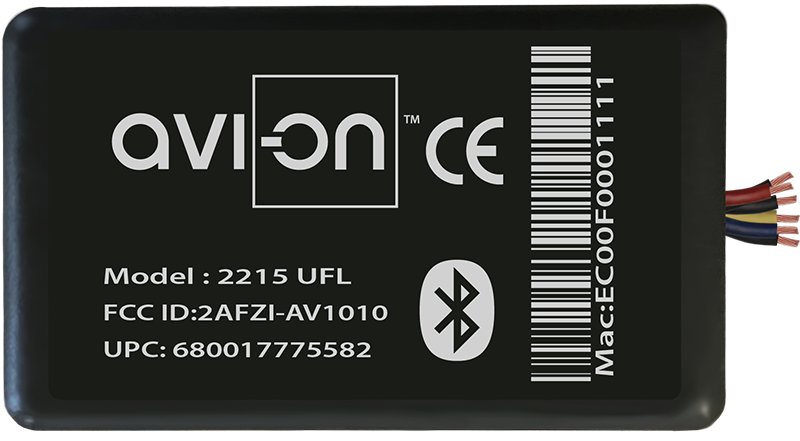

Avi-on Relay Fixture Adapters provide one or two channels of 0-10V output for dimming, and a relay control output. Compact at 56 x 38 x 21mm, Relay Fixture Adapters may be placed inside an LED lighting fixture to enable wireless switching and dimming with drivers that required a power disconnect to fully turn off. The relay adaptor is generally coupled with the 25-700 relay power supply to create a full AC to driver control solution.



Parts and Ordering

Select a part number from the table listed below.
Supply Voltage Channels Antenna Type Part Number
11 - 18 VDC Single Monopole (Wire Whip) 2115UFL
*11 - 18 VDC Dual Monopole (Wire Whip) 2215UFL

*special order item



To order please contact Avi-on sales at

(877) AVION-US
or
prosales@avi-on.com

for information on becoming an Avi-on partner and order details.
