Non-BLE
PIR Sensor
SENSOR FEATURES
Product Overview
The Avi-on wired PIR sensor provides cost-effective basic PIR coverage for standard motion-sensing ceiling-mount applications. This is an analog sensor used in conjunction with the analog sensor input of the AVI-XFAC-16A-1CH-CL1 or AVI-SIM-12-24VDC.
The Avi-on PIR Ceiling Mount Sensor is powered by and sends its signal to the XFAC (AVI-XFAC-16A-1CH-CL1) or Avi-on Sensor Input Module (AVI-SIM-12-24VDC) with a power supply (AVI-PSR20-277-24-150). The sensor is factory preset to allow for quick installation right out of the box in most applications. Lighting configuration should be done through the Avi-on App. Manual adjustments can be made physically on the sensor’s face.
Features
PIR Sensitivity
Covers typical office/open office applications with small motion coverage up to 15ft and large motion up to 25ft.
Power and Connection

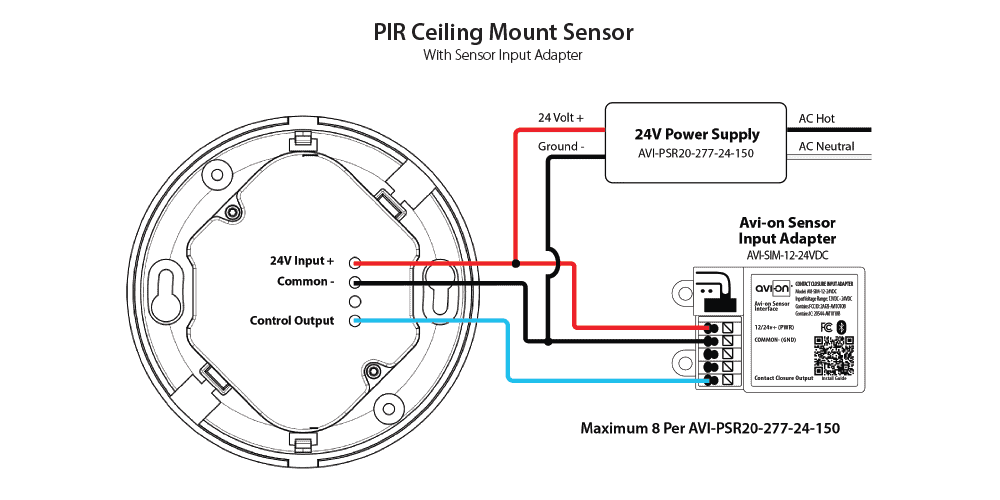

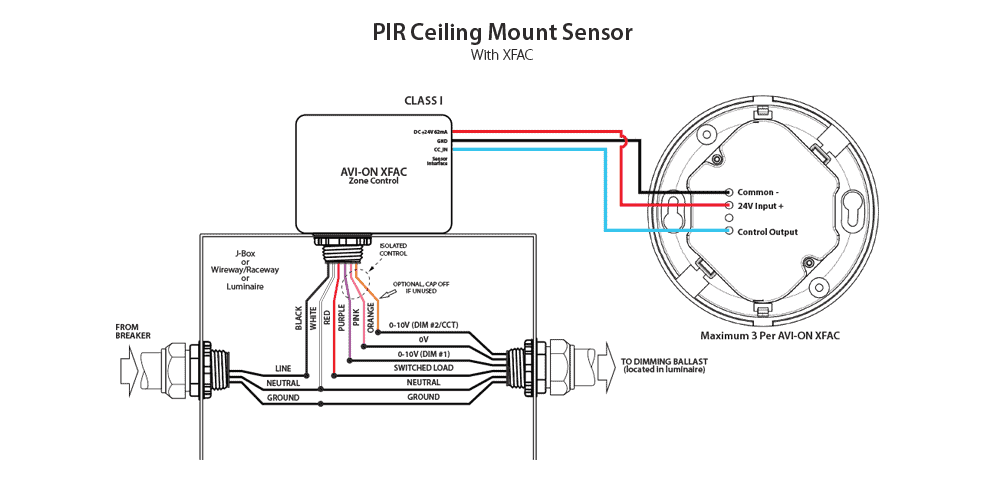

The ICM 24 can be powered by the 24VDC Aux port of the AVI-XFAC-16A-1CH-CL1. Up to four (4) ICM may be powered from one XFAC. When used with the AVI-SIM-12-24VDC, a separate 24DC power supply must be used such as the AVI-PSR20-277-24-150.
Sensor Settings
All timing and dim levels for the sensor are set and remotely configurable using the connected XFAC or IFAC. It is not recommended that any dip switch settings be changed from their factory defaults
On/Off
There is a 40-second warm-up period when power is first applied to the sensor. Before making adjustments, make sure office furniture is installed, lighting circuits are turned on, and HVAC systems are turned on. VAV (variable air volume) systems should be set to their highest airflow.
Non-BLE PIR Sensor Datasheet (PDF)
Sensor Set Up Guide (PDF)
Sensor Placement Guide (PDF)
Quick Set-up Guide (PDF)
Commercial Installation Guide (PDF)Sensor
PARTS & ORDERING
| Part Number | Name | Description |
|---|---|---|
| AVI-SEN-ICM-24 | PIR Ceiling Mount Sensor | PIR Non-Bluetooth Ceiling Mount Sensor |
To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for information on becoming an Avi-on partner and order details.
Specifications
- Input: Avi-on Direct Connect™ Low Voltage DC Sensor Port
- Dimensions: 1.46 in x 1.02 in x 0.60 in (37mm x 26mm x 15mm)
- Mounting: Acoustic tile clip included. Magnetic mount for inside fixture mounting available. 4mm M4 screw threads for mounting clip by customer
- Weight: 1.4 oz (40g)
- Wiring: Direct Connect Cable: 3ft (1m) -included and 10ft (3m) available
- Operating Temp: -22F to +158F (-30C to +70C)
- Storage Temperature: -40F to +185F (-40C to +85C)
- Humidity Rating: 95% non-condensing
- Programming: Via Avi-on platform. Mobile, laptop, remote, local. Program groups of sensors at once
- Operating Modes: Occupancy, vacancy, UV-C safety, bi-level, dim-to-specified level (never off), schedule driven, control zones or individual fixtures
- Microwave Sensor: 360º hi resolution, low power
- Time Delays: 15 sec – 1h 30 min adjustable via network (20min default)
- Status LED: On motion detection. Fixture light flashes on motion in test mode
- Daylight Harvesting: Open or closed loop (0-1020 Lux)
- Daylighting Range: 360º x 90º
- Spacial Coverage: 90º
- Height Range: 8ft-15ft (2.5m-4.2m)
- IP Rating: None
- Warranty: 5 years, 10 years optional
