Relay Closure Output
With Downlight Dimming

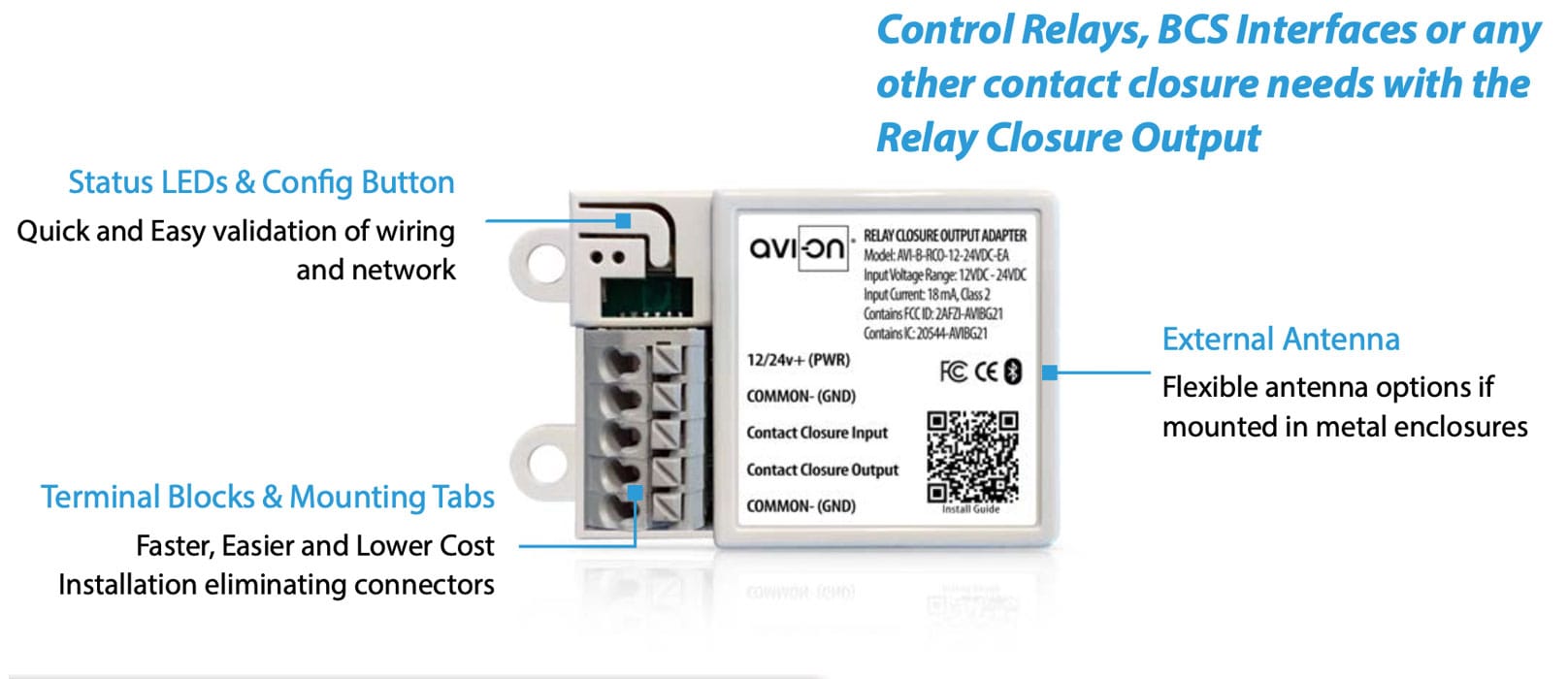

RCO FEATURES
RCO Specifications
Description
The Avi-on Relay Closure Output delivers dry contact closure output for driving external relays and building control systems, plus 0-10V dimming control for downlights and small fixtures that lack dim-to-off drivers — in a single wireless device. An integrated Direct Connect® sensor port adds motion and daylight sensing at the fixture without additional wiring.
The Relay Closure Output is part of the Avi-on™ Bluetooth with Mesh product ecosystem, supported by the Avi-on mobile app, commissioning tools, and cloud IoT services.
Any output command from the Avi-on network — motion sensors, daylight harvesting, wall stations, or schedules — can be directed to the Relay Closure Output. It ships with an external antenna for flexible mounting in metal enclosures.
Applications
DC Fixture Controller (Dimming)
DC Fixture Controller (Dimming): The Relay Closure Output works with 12-24V DC, controlling fixtures up to 1A. The small form factor allows it to fit within the wiring box of individual downlights, and can also support a Direct Connect sensor to add motion sensing and daylight control for downlights. The relay can disconnect power to the LEDs to support drivers that do not dim to off. The relay can be wired on the LED (DC side of the driver) to support constant current 1-10V drivers with less than 24V max voltage and 1A maximum current. See wiring diagram below.
Contact Closure Output
The Relay Closure Output can also be used as a generic contact closure output for control of circuit level relays in control panels (DC powered), external commands to building control systems, VAV boxes, custom indicator lights, or other uses that need an on/off signal based on a command from the Avi-on Network.
Avi-on LTE Remote Bridge Avi-on LTE Remote Bridge
RCO Datasheet
Quick Set-up Guide (PDF)
Commercial Installation Guide (PDF)RCO
PARTS & ORDERING
| Part Number | Name | Description | Application | Input Voltage |
|---|---|---|---|---|
| AVI-B-RCO-12-24VDC-EA | Relay Closure Output - Downlight Dimming | Contact closure output for triggering third-party devices from Avi-on events, plus 0-10V dimming and DC sensor input for downlights and small fixtures. 1A relay. Requires 12–24VDC power. | Indoor | 12 - 24 VDC |
To order please contact Avi-on sales at (877) AVION-US or prosales@avi-on.com
for order information or integration support.
Specifications
- Input Voltage: 12VDC – 24VDC
- Current Draw: 25mA @12V, 30mA @24V
- Relay Rating: 1A Continuous @ 30VDC (Resistive)
- Switching Current: 2A Max (Inrush/Peak); 60W Max Switching Power
- Mounting: Removable mounting tabs
- Weight: 0.45 oz (16g)
- Terminal Blocks: 22-16 AWG wires
- Operating Temp*: -40C to +70C (-40F to +158F)
- Storage Temperature: -40C to +85C (-40F to +185F)
- Humidity Rating: 95% non-condensing
- Radio Frequency: 2.4GHz
- Wireless Standard: BLE 4.2 with Mesh
- Point to Point Range**: 80ft with obstructions; 350ft unobstructed
- ESD: IEC/EN 61000-4
- Security: AES 128-bit encryption for device to device communication, AES 256-bit encryption for device to cloud communication
- Warranty: 5 years; 10 years optional
Certifications:
- FCC ID: 2AFZI-AVIBG21
- IC ID: 20544-AVIBG21
- BQB: DID: D063032
- CE: EN IEC 6100-6-1:2019,
EN IEC 6100-6-3:2021 - UL 916, 2043 (Plenum Rated)
- UL 924 Emergency Lighting Equipment
